Advantenna-L11

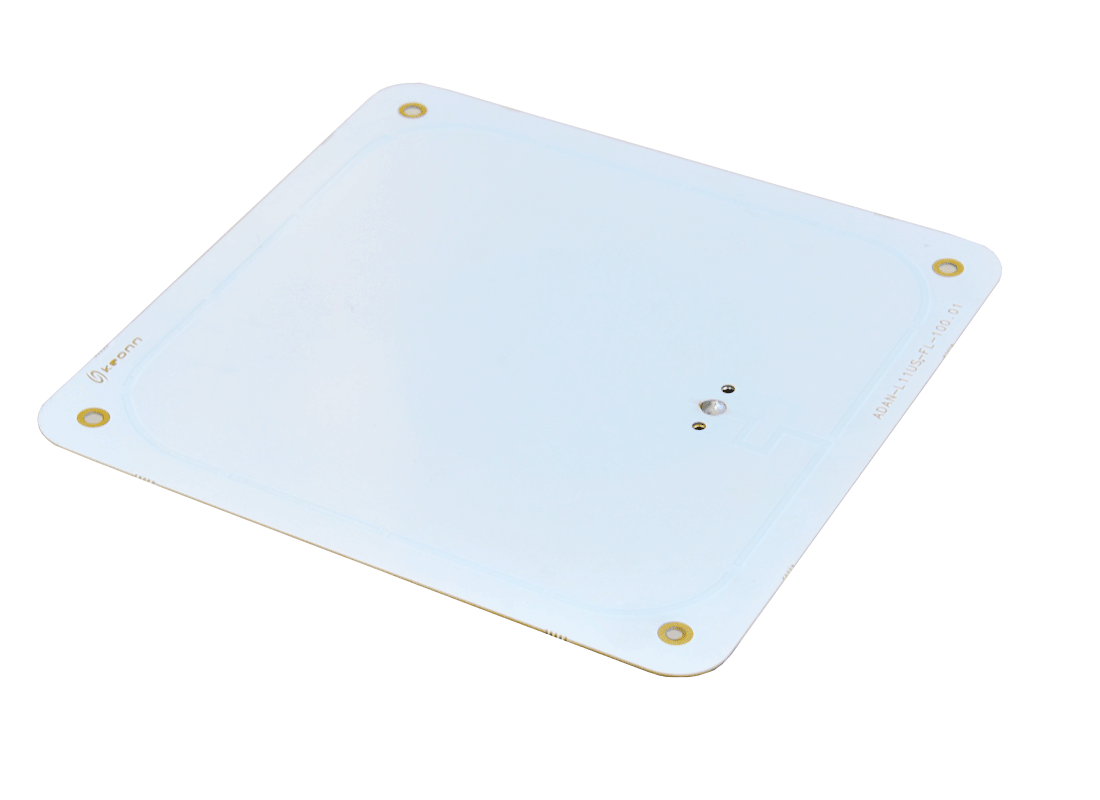

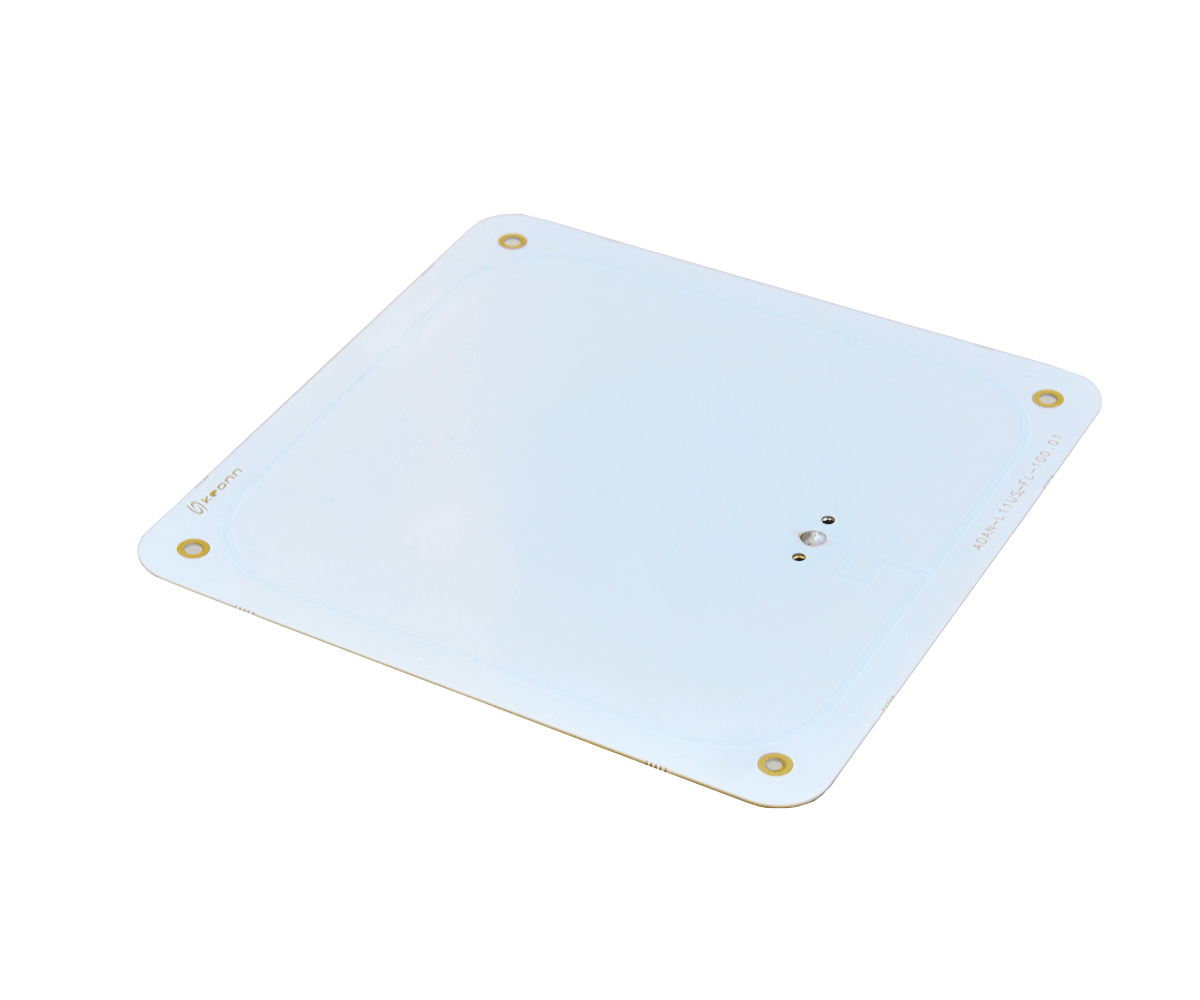

Advantenna-L11は、コンパクトな近距離RFID UHFアンテナです。非常に薄く、軽量です。

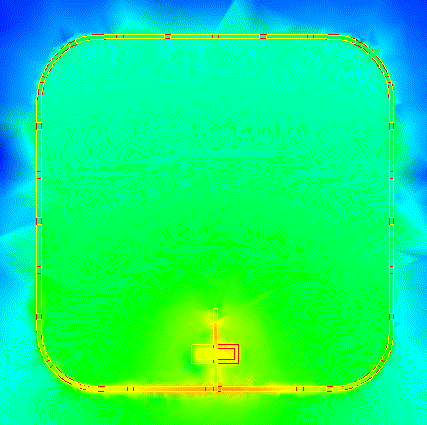

Advantenna-L11の利点は、検出ゾーン内の強力で均一な磁場分布 デュアルバンドアンテナ（ETSIおよびFCC）です。
お問合せ

Advantenna-L11仕様

Advantenna-L11アンテナ製品仕様

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, Advancloud, advanreader-150, advanreader-10

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, Advancloud, advanreader-150, advanreader-10

周波数帯 813-1000MHz
利得 2.0 dBi
ビーム幅 100°/　100°（両方向に広いビーム幅）
コネクタ SMA
フランジストレートまたはフランジ直角
寸法 137 mm x 137 mm x 0.5 mm
重量 25 g
動作温度 -20 °C ～ 80 °C
保護等級 IP65、IP68

*　記載された外観、仕様等は予告なく変更する場合があります。
