Advantenna-p22
Advantenna-p22は、2x2エレメントの円偏波パッチアンテナです。
Advantenna-p22の利点は両方向に60°のビーム幅と高利得かつコストパフォーマンスです。
お問合せ

Advantenna-p22仕様

Advantenna-p22アンテナ製品仕様

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, advanreader-150, advanreader-10
周波数帯 902-928MHz
利得 7.7 dBiC (標準)
8.0 dBiC (最大)
偏波 円偏波（RHCP)
ビーム幅 60°/　60°
コネクタ SMAまたはMCX
フランジストレート/フランジ右アングル/エッジマウント
寸法 277 mm x 277 mm x 3.3 mm（コネクタ含まず）
277 mm x 277 mm x 8 mm（エッジマウントコネクタ）
277 mm x 277 mm x 15 mm（フランジコネクタ）
重量 470 g
動作温度 -20 °C ～ 80 °C
保護等級 屋内用アンテナ、IP68

*　記載された外観、仕様等は予告なく変更する場合があります。

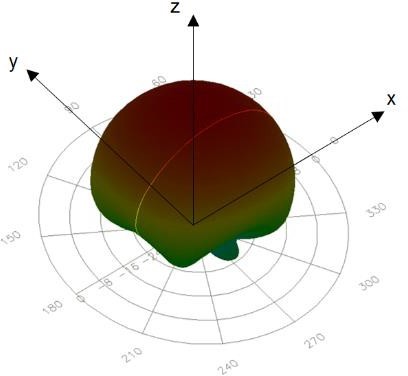

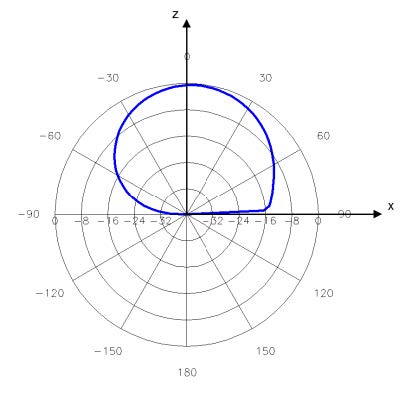

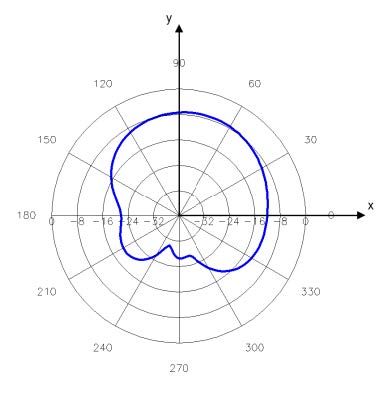

アンテナ放射パターン

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, advanreader-150, advanreader-10
Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, advanreader-150, advanreader-10

コネクタオプション

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, advanreader-150, advanreader-10

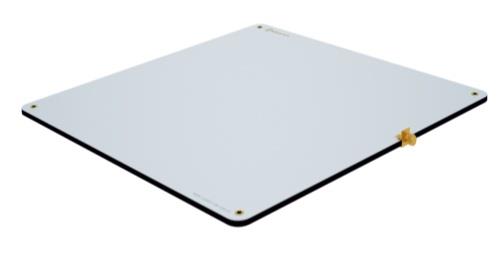

エッジマウント

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, advanreader-150, advanreader-10

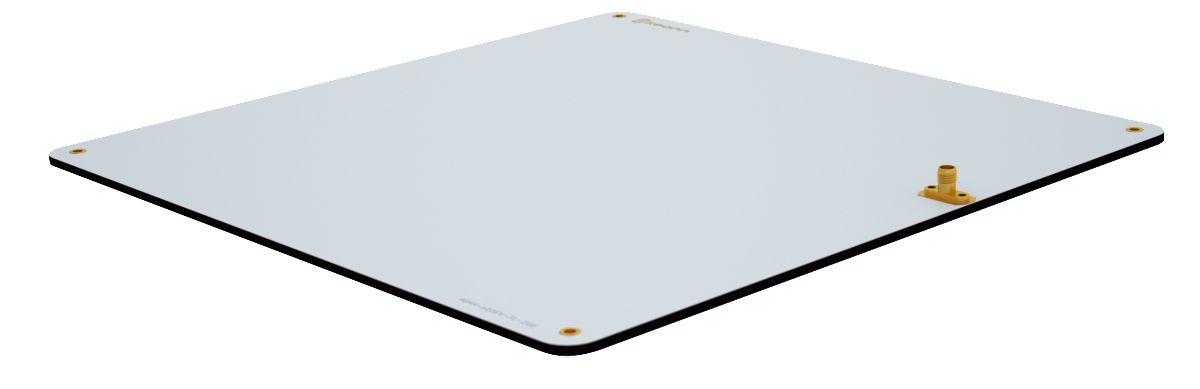

フランジストレート

Keonn Technologies, S.L, Spain, Barcelona, barcode, RFID, RAIN, HF, UHF, LF, Fixed, Mobile, handheld, apparel, retail, computer, reader, data capture, data collector, advantenna-cp11, advantenna-p11, advantenna-p12, advantenna-p13, advantenna-p14, advantenna-p16, advantenna-p22, advantenna-p33, advantenna-L11, advantenna-SP11, advantenna-SP22, AdvanGPIO-100, AdvanGPIO-200, AdvanSplitter-2, 2 ports, AdvanSplitter-4, 4 ports, AdvanSplitter-8, 8 ports, AdvanMux-4, 4 port multiplexer, AdvanMux-8, 8 port multiplexer, AdvanMux-16, 16 port multiplexer, advanreader-150, advanreader-10

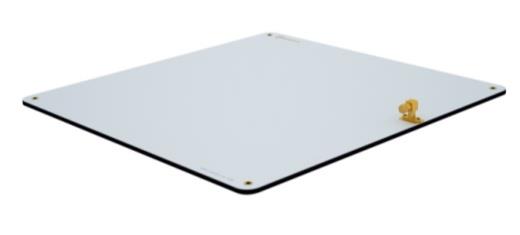

フランジ直角
